The Unseen Skeleton: Your Complete Guide to the Modern Rebar Production Line
Take a moment to look around you. The skyscraper that defines your city's skyline, the vast bridge spanning a river, even the very foundation beneath your feet. They all feel solid, permanent, and immensely strong. But what gives them that strength? What holds them together against the relentless pull of gravity and the forces of nature?
The answer is an unseen skeleton. A hidden network of steel known as rebar . It’s the humble, ribbed steel bar that, when embedded in concrete, creates the reinforced concrete that has built our modern world.
But rebar doesn't just appear out of nowhere. It’s the final product of a breathtakingly powerful and precise process. The journey from a piece of scrap metal to a high-performance reinforcing bar is a story of intense heat, incredible force, and sophisticated technology.
To truly appreciate the safety and resilience of our infrastructure, you need to understand how its backbone is forged.
So, let's step inside the factory. We're going on a detailed tour of the modern rebar production line. Forget the dry textbook diagrams. We’ll explore the sights, the sounds, and the science behind how this essential construction material is made.
The Genesis: It All Begins with Steel Billets
Every great structure starts with a solid foundation, and for rebar, that foundation is a steel billet. A billet is a long, square-ish bar of solid steel, and it's the raw ingredient for the entire process. But its own story starts even earlier, often in a scrap yard.
The vast majority of modern steel production, especially for rebar, is a triumph of recycling. Scrap steel from old cars, demolished buildings, and industrial machinery is collected and melted down in a massive vessel called an Electric Arc Furnace (EAF).
Imagine a colossal pot where powerful graphite electrodes deliver an immense jolt of electricity, creating an arc hotter than the surface of the sun to melt the steel.
During this melting process, the steel's chemistry is carefully adjusted. Samples are taken and analyzed in real-time. Tiny amounts of elements like carbon, manganese, and silicon are added. Why? Carbon adds hardness, while manganese improves overall strength and resistance to wear.
It’s a precise recipe. Too much carbon can make the steel brittle; too little makes it too soft. Once the molten steel has the perfect chemical makeup, it’s poured into a continuous caster, which forms it into the long, uniform billets we need. The quality of this initial billet dictates the quality of the final rebar. There are no shortcuts.
The Heart of the Forge: The Reheating Furnace
Once the billets arrive at the rebar mill, their first stop is the reheating furnace. Think of this as the warm-up act for the main event. It’s a massive, tunnel-like chamber that the billets pass through slowly. Inside, temperatures soar to around 1200°C (or 2200°F).
The goal here isn't to melt the steel, but to heat it until it glows a brilliant orange-white. At this temperature, the rigid crystal structure of the steel relaxes, making it soft and plastic, like clay ready for a potter's wheel. This uniform heating is critical.
A modern furnace, often a "walking beam" type that lifts and "walks" the billets through the chamber to ensure even heating, uses an array of sensors and computer controls to eliminate any cold spots. If the billet isn't heated evenly, it will resist being shaped in the next stage, leading to defects in the final product. The furnace also has to control the atmosphere inside to minimize "scale," a layer of iron oxide that forms on the hot surface. Too much scale is wasted material and can be pressed into the rebar surface, creating imperfections.
The Gauntlet of Steel: The Rolling Mill

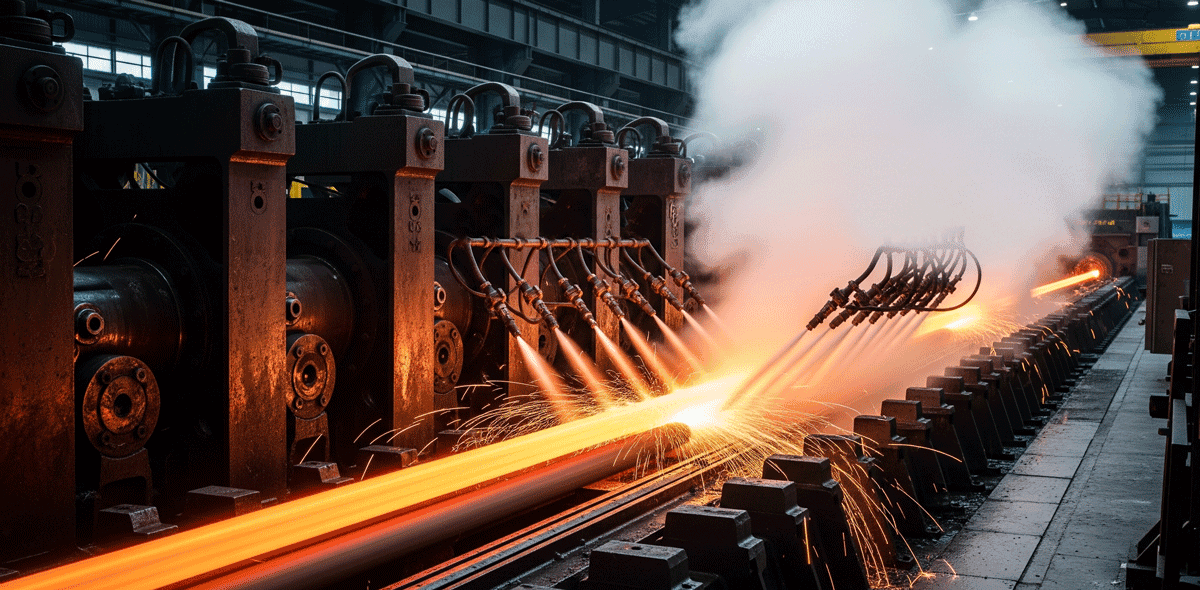

This is where the real transformation happens. As soon as the glowing billet exits the furnace, it’s shot like a fiery arrow into the rolling mill. A rolling mill is a long line of powerful machines called "stands," and each stand holds pairs of massive, heavy-duty rollers. The process is a continuous, high-speed gauntlet of pressure and shaping.
We can break the mill down into three main sections:
Roughing Stands: The first few stands are the heavy lifters. They take the large, square billet and begin to squeeze and stretch it, breaking down its coarse-grain structure and starting the process of reducing its cross-section. The billet becomes longer and thinner with each pass.
Intermediate Stands: The bar, now much longer and more rounded, continues to accelerate through the intermediate stands. These rollers continue the reduction process, further elongating the steel and refining its shape. Many modern mills use "no-twist" blocks here, where each pair of rollers is oriented at 90 degrees to the last. This shapes the steel from all sides without twisting it, reducing stress within the bar and leading to a more uniform final product.
Finishing Stands: This is the final, high-precision stage. The last few stands are responsible for two things: bringing the bar to its final desired diameter and embossing the characteristic ribs onto its surface. Special rollers, etched with a negative pattern of the ribs, press into the hot steel, creating the deformations that are essential for bonding with concrete. These ribs are the rebar's signature, turning a simple steel rod into a true reinforcing bar.
The entire journey through the rolling mill can take less than a minute, transforming a billet that was a few meters long into a continuous bar that can be hundreds of meters in length.
The Defining Moment: Quenching and Tempering (TMT)
As the rebar exits the final finishing stand, it's still glowing hot and moving at incredible speed. What happens next is perhaps the most critical part of the entire production line in terms of defining the bar's mechanical properties. This is the Thermo-Mechanical Treatment (TMT) process.
It’s a two-step dance of fire and water.
Step 1: The Quench. The bar passes through a quenching box, where it's sprayed with high-pressure, cool water for a precisely controlled amount of time. This isn't about cooling the whole bar down. It's about rapidly chilling just the outer surface. This sudden, extreme cooling transforms the surface's microstructure into "martensite," a very hard and strong form of steel. The core of the bar, however, remains hot and soft.
Step 2: The Temper. As the bar leaves the quenching box, it travels down a long cooling bed. Now, the residual heat from the hot, soft core begins to radiate outwards, warming up the hardened surface. This flow of heat "tempers" the outer layer, making it less brittle while retaining its high strength. At the same time, the core cools down more slowly in the open air, forming a more ductile, flexible microstructure known as "ferrite-pearlite."
The result is a composite bar, engineered from a single piece of steel. It has a super-strong, tough outer layer to withstand high stress, and a softer, more ductile core that allows it to be bent on a construction site without cracking. This combination is what gives TMT rebar its superior strength and crucial earthquake-resistant properties compared to older, non-treated rebar.
The Uncompromising Watchtower: A Steel Rebar Production Line's Focus on Quality
On a modern steel rebar production line, nothing is left to chance. A dedicated quality assurance team acts as the uncompromising watchtower, monitoring every stage of production. The safety and integrity of future buildings depend on their diligence.
This goes far beyond a simple visual check. At regular intervals, samples are cut from the line and sent to an on-site laboratory for a battery of destructive tests. A technician will clamp a piece of rebar into a universal testing machine, a powerful hydraulic rig that pulls the bar from both ends until it snaps. This measures its ultimate tensile strength (how much force it can take) and its yield strength (the point at which it begins to stretch and deform permanently).
Another machine will conduct a bend test, bending the bar 180 degrees around a mandrel to ensure no cracks or fractures appear. A spectrometer will analyze the chemical composition to confirm it matches the required grade. Even the ribs are measured to ensure they meet the specific height and spacing requirements for proper concrete bonding.
Every single bundle of rebar that leaves the mill is accompanied by a mill test certificate . This document is its passport, detailing the results of these tests and providing full traceability back to the very batch of steel it came from. For an engineer or contractor, this certificate is a guarantee of quality and a promise of safety.
The Final Stretch: Cooling, Cutting, and Bundling
After passing the TMT stage, the now extremely long rebar snakes onto a massive cooling bed. This is a large, flat area designed to let the bars cool down to ambient temperature in a controlled and uniform way, which is crucial for the final metallurgical structure to set properly.
As the bars travel along this bed, they meet the "flying shear." This is a massive, automated blade that cuts the continuously moving rebar into standard, marketable lengths (e.g., 12 meters or 40 feet) without ever stopping or slowing down the line. The precision and speed of this operation are essential to maintaining the mill's efficiency.
Once cut and cooled, the bars are collected by an automated stacking system. This system neatly aligns the bars and groups them into standard-sized bundles. Steel straps are then tightly wrapped around the bundles, which are then weighed and tagged. This tag is the final piece of the puzzle, containing all the essential information: the rebar's grade, diameter, length , and the all-important heat number for traceability. The bundles are now complete, ready for loading onto trucks and delivery to the construction sites that will become our future infrastructure.
Quick Summary
In essence, the creation of rebar is a high-tech, continuous flow. It begins with high-quality steel billets, which are heated to a malleable, glowing state. They are then rapidly sent through a series of rolling mills that squeeze and stretch them into a long, thin rod while embossing the crucial ribbed pattern. Immediately following this, the bar undergoes a thermo-mechanical treatment (TMT)—a rapid water quench of the surface followed by self-tempering from the hot core—to create its signature strength and ductility. After cooling naturally, the long bars are cut to length, methodically bundled, and backed by rigorous quality testing before they are ready for the world.
Conclusion: Forged in Fire, Proven by Science
The journey through a rebar production line reveals that a simple steel bar is anything but simple. It is a product of immense power and delicate control, where raw, fiery force is guided by metallurgical science. Every single step, from the recycled scrap in the furnace to the final strap on the bundle, is a calculated part of a process designed to create one thing: certainty.
It provides the certainty that a bridge can carry its load, that a foundation will not fail, and that a skyscraper can withstand the forces of nature. The next time you see a construction site, with rebar cages rising into the sky, you’ll know you're not just looking at steel. You’re looking at the end product of an incredible journey—a product forged in fire, shaped by force, and proven by science to be the strong, reliable backbone of our world.
